Electric motors are crucial components in various systems of modern vehicles, such as the starter motor, alternator, and other auxiliary motors. A key part of these motors is the carbon brushes, which facilitate the transfer of electrical current between stationary and moving parts.
Over time, these brushes wear out, leading to diminished performance or failure of the motor. Therefore, recognizing the signs of worn-out carbon brushes in your car early is not only important but can prevent costly repairs and ensure the reliable operation of your vehicle.
What Are Carbon Brushes in Cars?
Carbon brushes in cars are small components made from carbon or graphite, designed to conduct electrical current in electric motors. They play a vital role in ensuring smooth operation by maintaining consistent contact with the commutator or slip ring as the motor spins. In vehicles, carbon brushes are commonly found in components like the starter motor, alternator, and windshield wiper motors.
Common Applications in Cars
Starter Motor: Responsible for cranking the engine to start the vehicle.
Alternator: Generates electrical power to charge the battery and run electrical systems.
Wiper Motors: Powers the movement of windshield wipers.
Blower Motors: Drives the car’s HVAC fan system.
How Do Carbon Brushes Work in Cars?
Transferring Electrical Current
Carbon brushes are responsible for transferring electrical current from the stationary wiring to the rotating commutator or slip ring of the motor. This process ensures that the motor receives a steady flow of electricity, allowing it to perform its intended function, such as starting the engine or powering accessories like wipers and blowers.
Maintaining Contact with the Commutator
The brushes are held in place by spring-loaded holders, which press them firmly against the commutator. This constant contact allows the brushes to transfer electricity efficiently, even as the motor operates at high speeds. The pressure from the springs ensures consistent electrical conductivity, critical for smooth motor operation.
Allowing Rotational Movement
Carbon brushes are designed to adapt to the rotating motion of the commutator. Their composition allows them to wear down gradually without breaking or losing contact. This design ensures that the motor can operate continuously without interruption, even under heavy use.
Reducing Electrical Noise
By providing a stable connection, carbon brushes minimize electrical noise or interference that could disrupt the motor’s operation. This is particularly important in vehicles, where consistent motor performance is essential for safety and reliability.
Sacrificial Wear Component
Carbon brushes are intentionally designed to wear out over time, acting as a sacrificial component to protect the commutator from damage. By replacing the brushes periodically, you can extend the lifespan of the motor and prevent more expensive repairs.

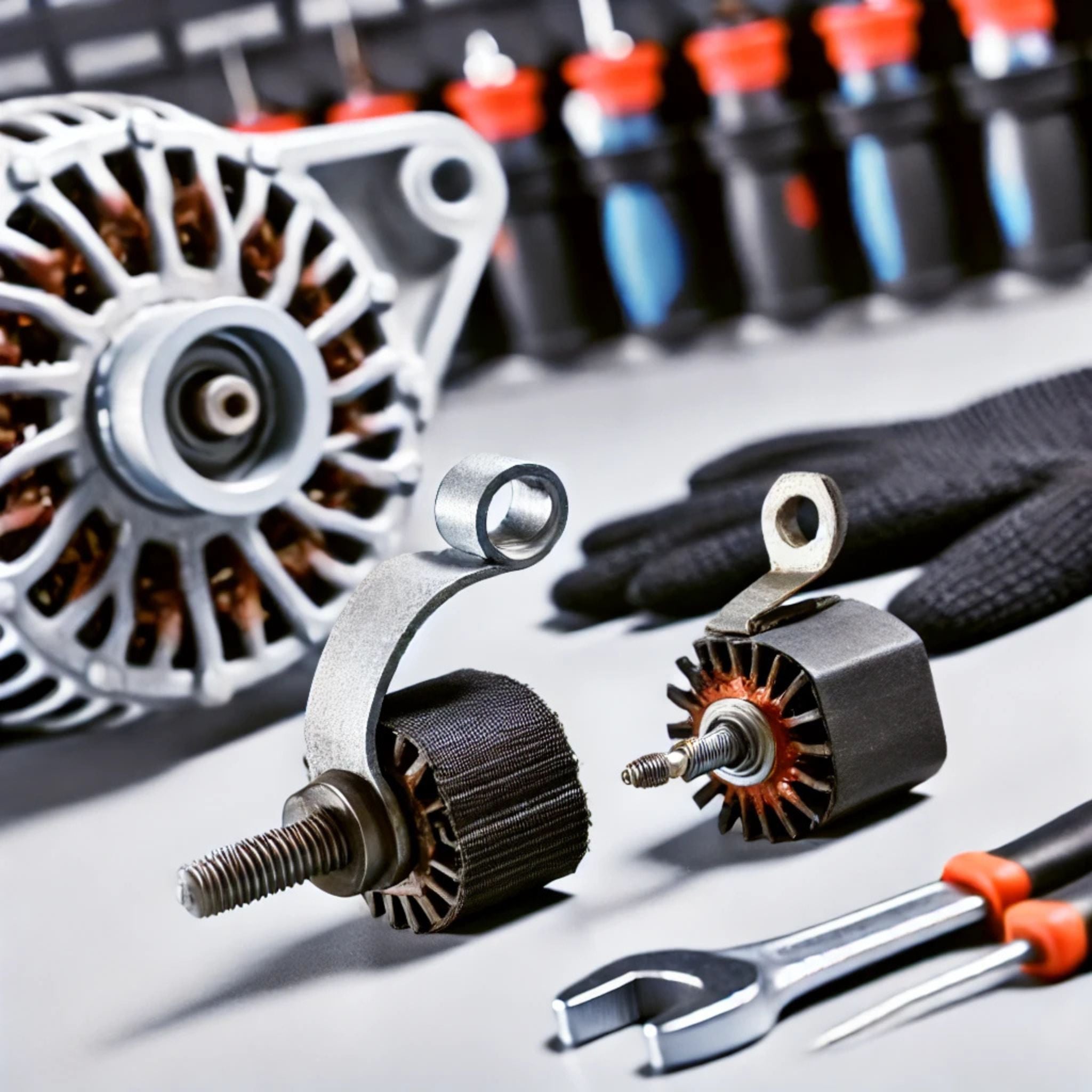

Signs Your Car’s Carbon Brushes Are Worn Out
How do you know when carbon brushes are worn? Below are the major signs:
Slow or Inconsistent Engine Start
When your car takes longer to start or the starter motor engages inconsistently, it’s often a sign of worn carbon brushes in the starter motor. These brushes play a critical role in transferring electrical current to the motor’s moving parts, enabling it to crank the engine. Over time, the brushes wear down and lose their ability to maintain proper contact with the commutator, leading to reduced efficiency.
As a result, the starter motor struggles to generate the necessary power to turn over the engine. Addressing worn brushes promptly can restore proper functionality and prevent further strain on the starter system. Regular maintenance helps avoid this issue and ensures reliable engine starts.
Dim or Flickering Headlights
Carbon brushes in the alternator are essential for generating electricity to power your car’s electrical systems. When these brushes wear out, they lose proper contact with the commutator, reducing the alternator’s efficiency. This can result in dim or flickering headlights, as the alternator struggles to supply consistent power.
Moreover, other electrical components, such as dashboard lights or accessories, may malfunction due to insufficient energy output. Promptly replacing worn carbon brushes ensures that the alternator operates effectively, maintaining reliable power for all vehicle systems and preventing further electrical issues. Regular inspection can help identify and address this problem early.
Noisy Wiper or Blower Motors
Unusual noises, such as grinding, rattling, or clicking, coming from the windshield wiper or blower motors can signal worn carbon brushes. These sounds occur when the brushes fail to maintain even contact with the commutator, causing irregular electrical flow and mechanical friction. This uneven contact disrupts the motor's smooth operation, leading to inefficiency and potential damage to internal components.
Addressing worn brushes promptly can restore proper motor function and prevent more extensive repairs. Regular maintenance and inspection can help identify this issue early, ensuring reliable operation of wipers and blowers.
Overheating Motor Components
Worn-out carbon brushes increase electrical resistance within the motor, causing it to work harder and generate excessive heat. If you notice unusual heat from components like the starter motor, alternator, or blower motor, it could indicate that the brushes are no longer making efficient contact with the commutator.
This overheating not only reduces motor performance but can also damage surrounding parts, such as wiring or the commutator itself. Prolonged exposure to high temperatures can lead to costly repairs or motor failure. Replacing worn brushes promptly can restore proper functionality and prevent overheating-related damage. Regular inspections can help detect this issue early.
Reduced Performance of Electrical Systems
A failing alternator with worn carbon brushes struggles to supply adequate power to the vehicle’s electrical systems. This can cause noticeable issues like a weaker HVAC blower, slower windshield wiper movement, or intermittent operation of accessories such as power windows or audio systems. These problems arise because the degraded brushes fail to maintain proper electrical contact, reducing the alternator's ability to generate consistent current.
As a result, the vehicle's electrical components operate inefficiently or unpredictably. Timely replacement of the brushes restores the alternator's performance and ensures reliable power delivery to all systems. Regular checks can prevent these disruptions.
Causes of Carbon Brush Wear in Cars
Frequent Usage
Car systems like the starter motor and alternator are heavily used components, leading to natural wear of their carbon brushes over time. Frequent starts and high accessory loads, such as running air conditioning or powering multiple devices, increase the strain on these brushes, causing them to wear out faster.
This accelerated wear can reduce the efficiency and reliability of the motor or alternator. Regular maintenance and inspection help identify worn brushes early and ensure uninterrupted performance of these critical systems.
Electrical Arcing
Sparks or electrical arcs are a normal part of motor operation but can gradually wear down carbon brushes. When brushes have poor contact with the commutator or are subjected to high electrical loads, the intensity of arcing increases, accelerating their degradation. Regular inspection and timely replacement of brushes help minimize this wear and maintain motor efficiency.
Contamination
Contamination from dust, oil, or moisture in the brush compartment can disrupt the smooth contact between the carbon brushes and the commutator. This interference leads to uneven wear and reduced motor efficiency. Regularly cleaning the motor components helps prevent contamination, ensuring consistent brush performance and extending their lifespan.
Improper Installation
Incorrectly installed carbon brushes can fail to align properly with the commutator, causing uneven contact and accelerated wear. This misalignment disrupts the transfer of electrical current, reducing the motor's efficiency and the brushes' lifespan.
Proper installation according to manufacturer guidelines ensures that the brushes function optimally, providing consistent contact and longer durability. Regular checks after installation can help identify and correct any alignment issues.
Inspection and Carbon Brush Replacement in Cars
Wondering how to change carbon brushes? Here is the step-by-step process explained:
Step 1: Disconnect the Battery
Disconnecting the car’s battery before inspecting or replacing carbon brushes is essential for safety. It prevents the risk of electric shock or accidental short circuits, which can damage electrical components or cause injuries. This simple precaution ensures a safe working environment while performing maintenance on the motor.
Step 2: Locate the Motor
To inspect carbon brushes, first identify the motor, such as the starter motor or alternator, where the brushes are located. Refer to your car’s manual for detailed instructions on accessing these components safely and correctly. This ensures accurate identification and proper handling during the inspection process.
Step 3: Remove the Brushes
Locate the brush compartment, usually positioned near the commutator in the motor. Carefully remove the carbon brushes and examine them for signs of wear, chipping, or cracks. This inspection helps determine if the brushes need replacement to maintain proper motor functionality.
Step 4: Measure Brush Length
Measure the length of the carbon brushes using a caliper and compare it to the specifications provided by the manufacturer. If the brushes are shorter than the recommended length, they can no longer maintain effective contact and should be replaced to ensure proper motor performance.
Step 5: Install New Brushes
Replace worn carbon brushes with new ones that are compatible with the motor’s specifications. Properly align the brushes to ensure consistent contact with the commutator, and secure them firmly in their holders. This ensures efficient electrical transfer and reliable motor operation.
Step 6: Test the System
After replacing the brushes, reconnect the car’s battery and test the motor to confirm it operates smoothly. Listen for any unusual noises and check for signs of overheating, as these could indicate improper brush installation or other issues. A successful test ensures the motor is functioning correctly.
Preventive Maintenance for Car Carbon Brushes
Consistent Inspection
Regular inspections of essential motor systems, such as the starter and alternator, are crucial for identifying wear on components like carbon brushes. Early detection allows for timely replacements, preventing performance issues or costly system failures.
By scheduling periodic checks, you can ensure the motors operate efficiently and avoid unexpected breakdowns. This proactive maintenance approach helps extend the lifespan of both the brushes and the motor.
Clean the Motor Components
Keeping motor components clean from dust, oil, and debris is essential to maintain efficient contact between the carbon brushes and the commutator. Contaminants can disrupt electrical conductivity, cause uneven brush wear, and reduce motor performance. Regular cleaning helps extend the lifespan of the brushes and ensures smooth motor operation.
Avoid Excessive Loads
Reducing the use of electrical accessories, such as lights or audio systems, when the engine is off minimizes the strain on the alternator. This helps prevent excessive wear on the alternator brushes, ensuring they last longer and maintain optimal performance for your vehicle's electrical system.
Use Quality Parts
Using high-quality carbon brushes enhances motor performance and ensures a longer lifespan by providing consistent electrical contact and durability. These brushes wear down more evenly and resist damage, reducing the need for frequent replacements. Investing in premium brushes saves time, money, and effort while maintaining reliable motor functionality.
How Long do Carbon Brushes Last?
The lifespan of carbon brushes depends on the motor's usage, operating conditions, and the quality of the brushes. In general, carbon brushes can last anywhere from a few thousand to tens of thousands of operating hours. For automotive applications, such as starter motors or alternators, brushes may last several years under normal driving conditions.
However, frequent starts, high accessory loads, or harsh environments can accelerate wear. Regular inspection and maintenance are essential to ensure timely replacement before they wear out completely. Using high-quality brushes and following the manufacturer's guidelines can help maximize their lifespan. Monitoring performance, such as power output or unusual noises, is key to identifying when brushes need replacement.
FAQs
How often should carbon brushes in cars be replaced?
The replacement interval depends on usage, but regular inspections can help identify wear. Starter motor brushes may last several years under normal use, while alternator brushes may require replacement more frequently.
What happens if I don’t replace worn brushes?
Worn brushes can lead to motor failure, damage to the commutator, and reduced performance of critical systems like the starter or alternator.
Can I replace car carbon brushes myself?
If you have basic mechanical skills and the right tools, you can replace carbon brushes in cars. However, professional assistance is recommended for complex systems.
How can I tell if my alternator brushes are worn out?
Dim or flickering headlights, reduced electrical performance, and unusual noises from the alternator are signs that the carbon brushes in your alternator may be worn out. These issues occur because the brushes can no longer maintain consistent electrical contact, reducing the alternator’s ability to generate power effectively. If left unchecked, this can lead to further electrical failures and reduced vehicle functionality.
Are all carbon brushes the same?
No, carbon brushes are not all the same. They differ in size, shape, and material composition depending on the specific motor and application they are designed for. For example, just as a Large Sash Brush is specifically designed for precise painting tasks, carbon brushes are tailored to fit the unique requirements of each motor. Using the correct type of brush ensures compatibility and optimal performance, so always follow the manufacturer’s recommendations for your motor or appliance.
Conclusion
Carbon brushes are essential for the reliable operation of key motorized components in your car. Recognizing the signs of wear, such as reduced motor performance, unusual noises, or overheating, allows you to replace brushes before they cause major failures. Regular inspection and maintenance of carbon brushes in the starter motor, alternator, and other systems ensure your vehicle operates efficiently.
Similarly, just as maintaining your carbon brushes is vital for motor health, keeping your car’s exterior in top condition is equally important. Check out these Tips for Washing and Maintaining Your Ceramic Coated Car to ensure your vehicle remains protected and visually stunning while avoiding unnecessary wear and tear. By using quality replacement brushes and following proper installation procedures, you can extend the lifespan of your car’s motors and avoid costly repairs.
